• Model NO.：002
• Remote Control：With Remote Control
• Usage：Indoor
• Certification：CE, GS, RoHS
• Remote Control Fireplace Board：Yes
• Classification：Control Panel
• Input Operating Voltage：110-240AC
• Maximum Operating Current：1A
• Transport Package：Each One with a Gift Box, 10 Pieces in a Standard
• Specification：1.6mm
• Trademark：XYX,OEM
• Origin：Guangdong, China (Mainland)
• Production Capacity：50, 000 PCS,Year

Basic Info.

Model NO. 002 Remote Control With Remote Control Usage Indoor Certification CE, GS, RoHS Remote Control Fireplace Board Yes Classification Control Panel Input Operating Voltage 110-240AC Maximum Operating Current 1A Transport Package Each One with a Gift Box, 10 Pieces in a Standard Specification 1.6mm Trademark XYX/OEM Origin Guangdong, China (Mainland) Production Capacity 50, 000 PCS/Year

Product Description

LCD Touch Screen Thermostat APP Control Fireplace Control Board with Flicker Mould

This Electric Fireplace PCBA is our new product,has three modes to control firepalce,by Touch LCD TC/APP/Push buttons.

LCD TC size:4.3 inch
Thermostat:
Progarammable timing
Power to be chosen by the user -1kw & 2kw
Temperature range

Touch screen Functions:
1.On-off
2.Heater-Heat 1& Heat 2
3.Thernostat-Tem+&Tem -
4.7 day programmable timer

Manual Override Buttons Functions:
Button 1-(on/off)
Button 2-(press once-heat 1 on;press again-heat 2 on,press again-heat 1&heat 2 off)

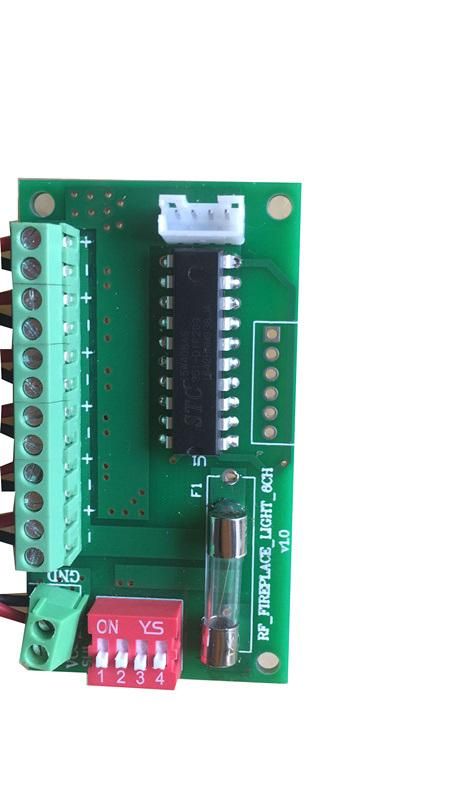

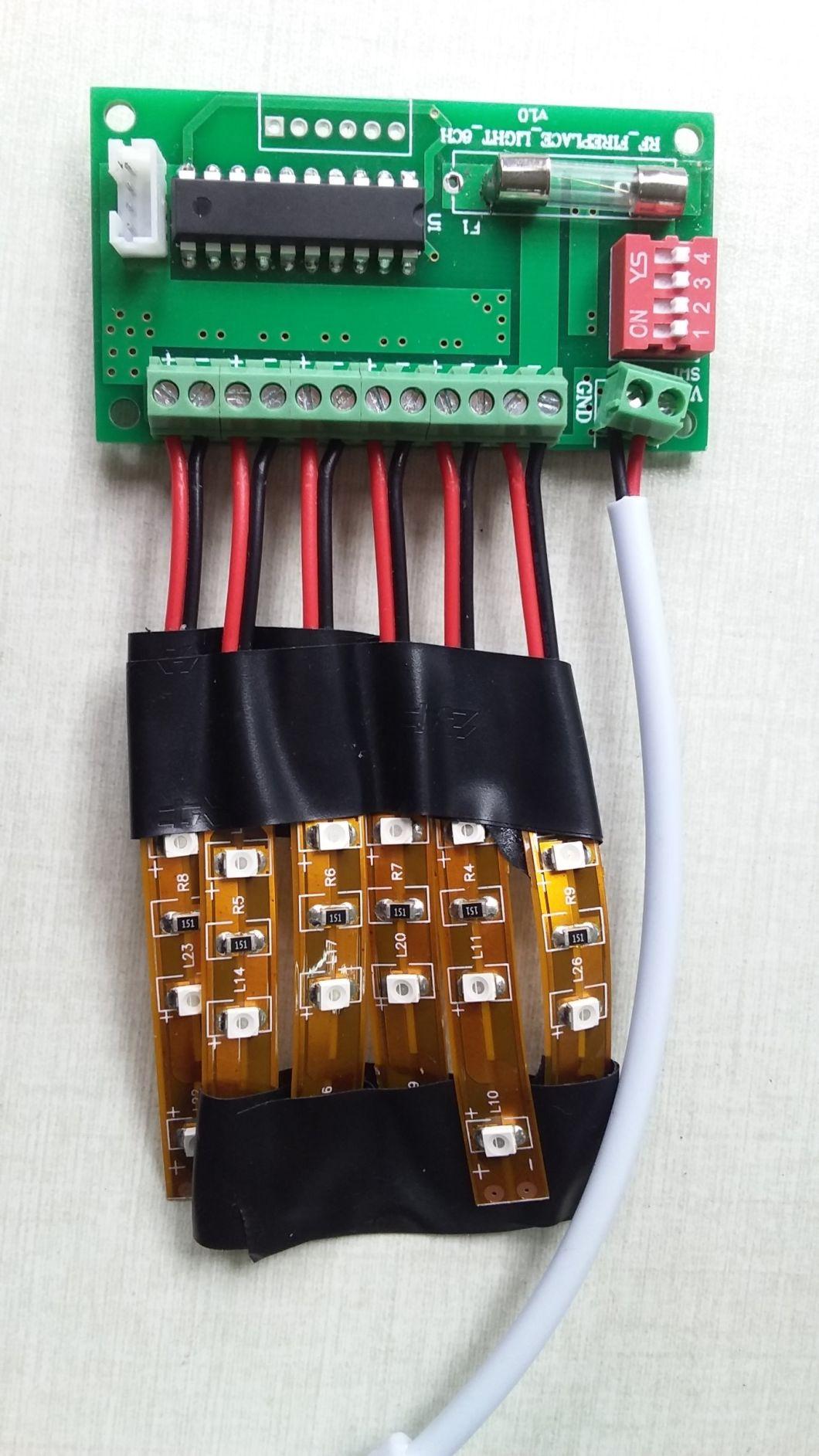

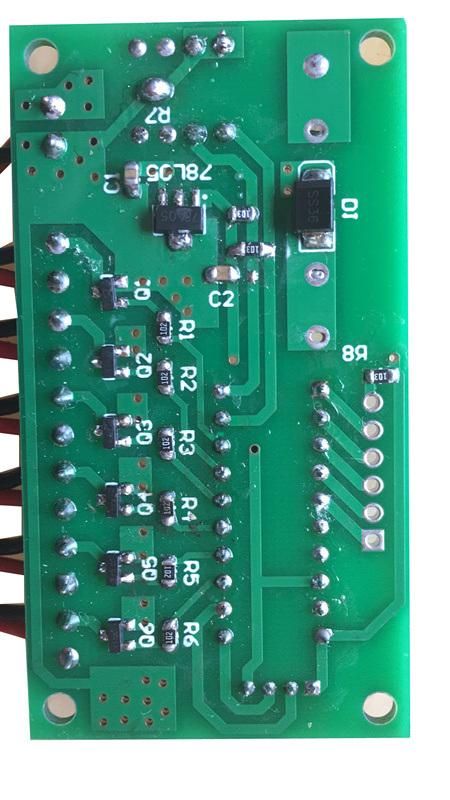

Product Appearance
Size: 117mm X 65mm Thickness: 1.6mm
Product parameters
Model: FR-002 Classification: Control panel
Input operating voltage: 110-240AC Maximum operating current: 1A
Functions
1) large current protection device is available
2) two operation modes: Infrared remote control and keypad
3) 2pcs 1KW separate controllable heating unit
4) 1KW controllable indicator lights
5) separate controllable windsweeper function
6) buzzers tone on operation
7) extensible interfaces

Our best predominance is that we can design according to your requirements.


Product Details:

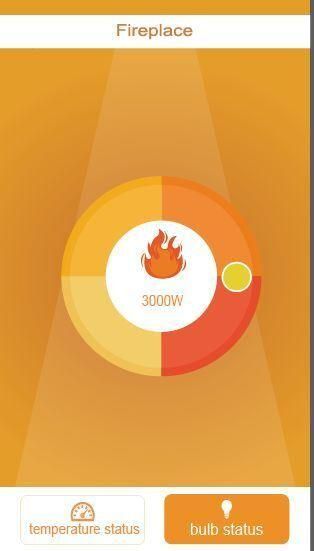

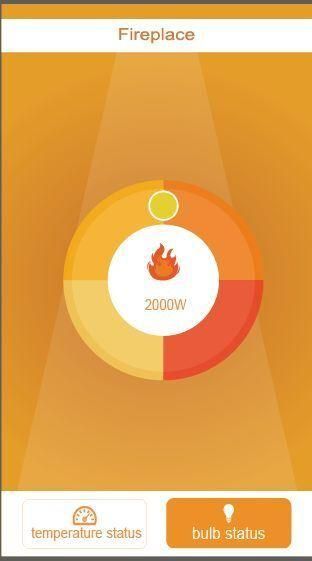

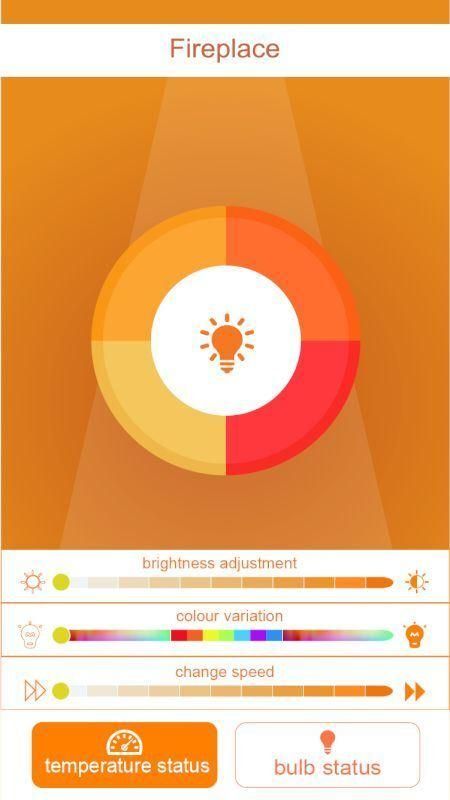

APP UI




and so on.
