• Model NO.：SHP-004
• Unified Catalogue：G3503
• Form：Cut-To-Size
• Technics：Artificial
• Certification：ISO, Lloyds;BS; ASTM
• Material：Lightweight Stone Honeycomb
• Usage：Warehouse, Villa, Dormitories, Workshop, Hotel; Sh
• Customized：Customized
• Adhesive：Expoxy Resin
• Fire Resistance：A Grade
• Skin：Veneer, Quarz, Mable, Granite, Travertine
• Stone：Marble, Granite, Travertine, Quartzite, Porcelain
• Edge Processing：Edge Closed, Edge Open, 45 Degree Closed
• Application：Wall Cladding, Counter Top, Bathroom, Elevator
• Transport Package：Crate
• Specification：from 8mm to 200mm; customized
• Trademark：Hongzan
• Origin：Foshan, China
• HS Code：76169990
• Production Capacity：500, 000 Sqm Annually

Regular Size Marble slab thickness: 3/5/8/10mmMarble honeycomb panel size: 600*600/600*800/2440*1220*20mmMax. SizeMarble slab thickness: 30mmMarble honeycomb panel size: 2440*1800*30mmRegular Surface TreatmentBrushed, polished, chiseled, honed, grooved, rubbing, etc.BendingYes (customized)ApplicationsWall cladding(exterior & interior), ceiling, partitions, furniture board, elevator decoration, flooring, bathroom, etc.Customerization(MTM)Yes (color, surface texture, size, shape, pattern, etc.)
*Granite Honeycomb PanelRegular Size Granite slab thickness: 5/8/10mmGranite honeycomb panel size: 600*600/600*800/2440*1220*20mmMax. SizeGranite slab thickness: 10mmGranite honeycomb panel size: 1500*1200*30mmRegular Surface TreatmentBrushed, polished, chiselled, honed, grooved, rough-rubbing, etc.BendingYes (customized)ApplicationsWall cladding (exterior & interior), ceiling, partitions, furniture board, elevator decoration, flooring, bathroom, table, etc.Customization (MTM)Yes (color, surface texture, size, shape, pattern, etc.)
Suggestion: 1. For interior wall : 15/20mm (stone: 5mm); mostly use marble & travertine; surface treatment: polished/matt surface  2. For exterior wall:25/28/30mm (stone:8mm); mostly use granite & marble with dark color; surface treatment: polished/matt surface for marble

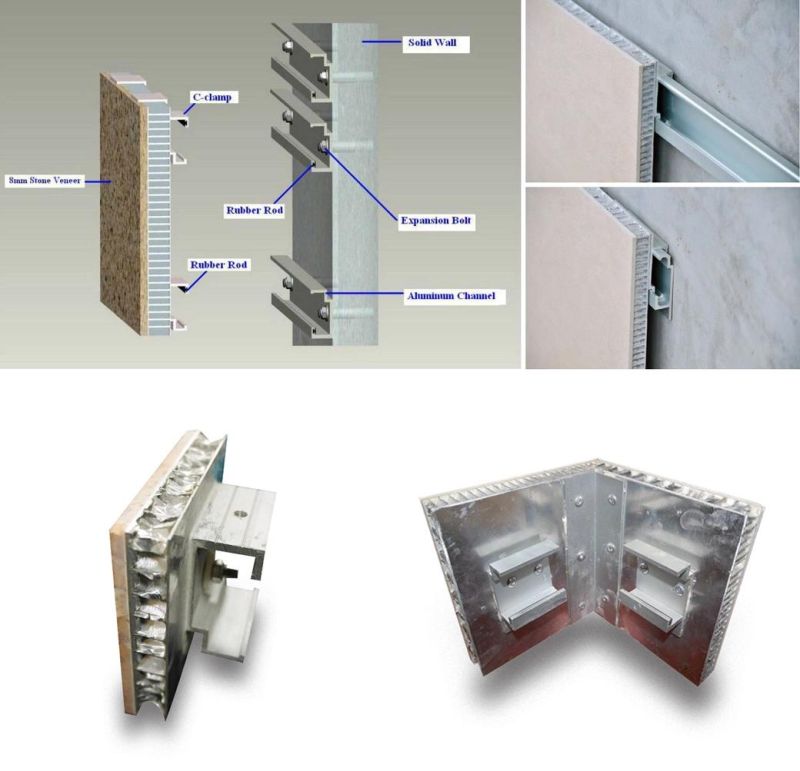

Hongzan Standard Installing System for Stone Honeycomb Panel (customized installation system is available):






2. Technical Data

*Executive standard for stone honeycomb panel: China Industry Standard
  ItemsTechnical requirementsWN Contamination resistanceNo visible residual contamination Falling ball impact resistanceNo glue-off or damageSoft heavy object impact resistance No glue-off or damage Flatwise compressive strength/Mpa≥0.8≥0.6 Flatwise compressive elastic modulus/Mpa≥30≥25 Flatwise shear compressive/Mpa≥0.5≥0.4 Flatwise shear compressive/Mpa≥4.0≥3.0Climbing drum peel strength    (N.mm/mm) Average value≥50≥40 Minimum value≥40≥30 Flatwise tensile adhesive strength MpaAverage value≥1.0≥0.6 Minimum value≥0.6≥0.4 Flexural strength(standard value) Mpa Granite≥8.0 -Sandstone, Marble, Limestone≥4.0Flexural rigidity                                         (N.mm2)  Aluminum honeycomb panel≥1.0 x 10⁹≥1.0 x 10⁸ Steel honeycomb panel≥1.0 x 10⁹FRP honeycomb panel≥1.5 x 10⁸ Shearing rigidity/N≥1.0 x 10⁵≥1.0 x 10⁴ Hot water resistance Appearance No abnormalities - Average decrease percentage of flatwise adhesive strength (%)≤ 15 Temperature different resistance Appearance No abnormalities Average decrease percentage of bending strength (%)≤ 20 Anti-freezing Appearance No abnormalitiesAverage decrease percentage of flatwise adhesive strength (%)≤ 15Note:  The width of the sample in flexural test is 100mm.
*Comparison of Stone Honeycomb Panel and Traditional Stone Slab
  Traditional stone Slab with Junction PieceStone Honeycomb PanelsWeight comparison30mm Total thickness 20mm Total thickness 75kg/m² (weight) 15kg/m² (weight)Performance comparison Unable to bendBendable(pressing 30mm bent not crack or broken)Installationbig expenditure small expenditure( >$50.00/m2 ) ( <$16.00/m2 )Safety PerformanceCracking in impact-resistant testOnly with punctate crackingMaterial availability (useful material output from one cubic) 28-38m2 80-100m²Maximum size≤ 600 x 600up to 1600 x 3200
The Function Of Stone Honeycomb Panel
 15.5 (kg/m²⁾Specific weight:0.775 (t/m³)Sound insulation quantity (Weight):(note: calculate on the basis of testing result of 12mm-thick plate) Adhesiveastronautic serirs epoxy resin (used between -40ºC to 100ºC for long term)             Adhesive strengthShear StrengthRoom temperature≥25 Mpa100ºC≥15 MpaSheet-core peeling strength20ºC≥20 N/cm Honeycomb core adhesive strengthNode Room temperature>13 N/cm100ºC>8 N/cmShear strength room temperature20ºC≥0.44 Mpa Wind pressure resistance strengthThe measurement of the tested composite panel is 100mm*1500mm*20mm, and the tested wind pressure is 3000Pa.
The reasult of the experiment: the wind pressure distortion performance can reach P3=3000Pa.


What Certificates We Obtained ?

Hongzan has obtained international recognized certificates and test reports for aluminum honeycomb panel related to Fire rate, sound insulation, and so on, E.G.:

• ISO 9001:2008 by BV
• Marine Certificates (Fire Rated A2) by LLOYDS
• BS 476 ,475 by TUV PSD Singapore
• EN13501-1 by ITS
• ASTM by ITS
