Decoration Stone Honeycomb Panels for Interior and Exterior Wall

FoShan HongZan Building Materials Co., Ltd.
  • Surface Finishing：Honed, Polished, Buffing, Burnishing, Flamed
  • Color：Red, White, Blue, Black, Gray, etc.
  • Shape：a Rectangle, a Square, a Triangle, a Rectangle, Et
  • Size：600*600mm, 1220*2440mm, Customized Made
  • Thickness：10mm, 15mm, 20mm, 25mm, 30mm or Customized Made
  • Granite Density：>3g,cm³

Base Info

  • Model NO.：SHP-041
  • Unified Catalogue：G3503
  • Form：Cut-To-Size
  • Technics：Artificial
  • Certification：ISO, Lloyds;BS; ASTM
  • Material：Lightweight Stone Honeycomb
  • Usage：Warehouse, Villa, Dormitories, Workshop, Hotel; Sh
  • Customized：Customized
  • Adhesive：Expoxy Resin
  • Fire Resistance：A Grade
  • Skin：Veneer, Quarz, Mable, Granite, Travertine
  • Stone：Marble, Granite, Travertine, Quartzite, Porcelain
  • Edge Processing：Edge Closed, Edge Open, 45 Degree Closed
  • Application：Wall Cladding, Counter Top, Bathroom, Elevator
  • Transport Package：Crate
  • Specification：from 8mm to 200mm; customized
  • Trademark：Hongzan
  • Origin：Foshan, China
  • HS Code：76169990
  • Production Capacity：500, 000 Sqm Annually

Description

 0.775(t/m³)Sound insulation quantity (Weight):(note:calculate on the basis of testing result of 12mm-thick plate) Adhesive                       astronautic serirs epoxy resin                                                 (used between -40ºC to 100ºC for long term)             Adhesive strengthShear StrengthRoom temperature≥25 MPa 100ºC≥15 MPaSheet-core peeling strength20ºC≥20 N/cm Honeycomb core adhesive strengthNode Room temperature>13 N/cm100ºC>8 N/cmShear strength room temperature20ºC≥0.44 MPa Wind pressure reistance strength      The measurement of the tested composite panel is              100mm*1500mm*20mm, and the tested wind preaaure is 3000Pa,                    the reasult of the experiment:                                        the wind pressure distortion performance can reach P3=3000Pa.
3. Application

Ultra-thin stone honeycomb panels can be used on wall cladding (exterior & interior), bathroom and cleanroom, flooring, partition, elevator decoration, door, counter top and other furniture boards, etc.
Decoration Stone Honeycomb Panels for Interior and Exterior Wall
4. Package Details

Hongzan will use standard export packages--wooden crate which will largely protect the products well during land/sea/air/train transportation. Customized package requirements are available.
Decoration Stone Honeycomb Panels for Interior and Exterior Wall

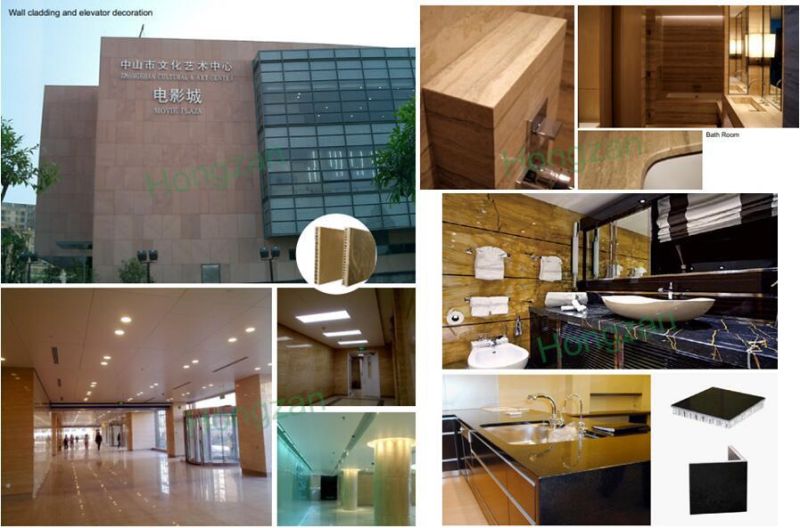

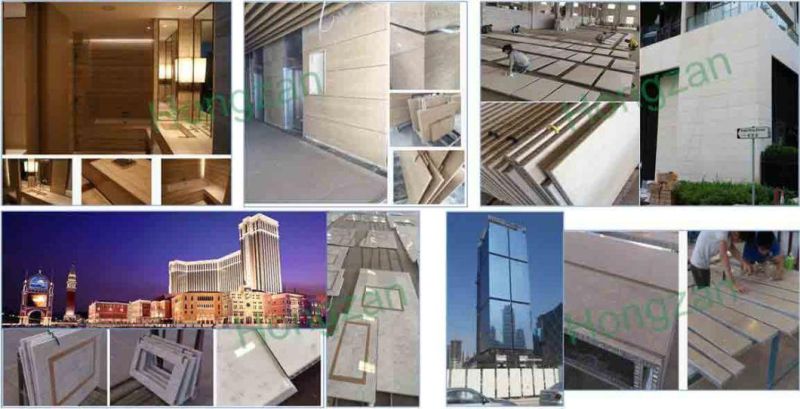

5. Project Show

Stone Honeycomb Panel can be widely used on bathroom's wall, floor, counter top, exterior or interior wall cladding, flooring, elevator, partition, furniture board, table, cabinet top, etc.
Decoration Stone Honeycomb Panels for Interior and Exterior Wall

6. Certificates

Hongzan has obtained international recognized certificates and test reports for stone honeycomb panel related to Fire rate, sound insulation, and so on, E.G.:
1), ISO 9001:2008;
2), A class fire rate by Lloyd's ( Marine Association) ;
3), BS 476 ,475 by TUV PSD Singapore;
4), EN13501-1 by ITS;
5), ASTM by ITS.
