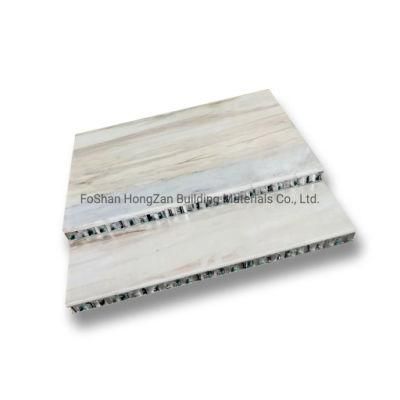

Stone Cladding Honeycomb Panels for Exterior Wall

FoShan HongZan Building Materials Co., Ltd.
  • Surface Finishing:Honed, Polished, Buffing, Burnishing, Flamed
  • Color:Red, White, Blue, Black, Gray, etc.
  • Shape:a Rectangle, a Square, a Triangle, a Rectangle, Et
  • Size:600*600mm, 1220*2440mm, Customized Made
  • Thickness:10mm, 15mm, 20mm, 25mm, 30mm or Customized Made
  • Granite Density:>3g,cm³

Base Info

  • Model NO.:SHP-3
  • Unified Catalogue:G3503
  • Form:Cut-To-Size
  • Technics:Artificial
  • Certification:ISO, Lloyds;BS; ASTM
  • Material:Lightweight Stone Honeycomb
  • Usage:Warehouse, Villa, Dormitories, Workshop, Hotel; Sh
  • Customized:Customized
  • Adhesive:Expoxy Resin
  • Fire Resistance:A Grade
  • Skin:Veneer, Quarz, Mable, Granite, Travertine
  • Stone:Marble, Granite, Travertine, Quartzite, Porcelain
  • Edge Processing:Edge Closed, Edge Open, 45 Degree Closed
  • Application:Wall Cladding, Counter Top, Bathroom, Elevator
  • Transport Package:Crate
  • Specification:from 8mm to 200mm; customized
  • Trademark:Hongzan
  • Origin:Foshan, China
  • HS Code:76169990
  • Production Capacity:500, 000 Sqm Annually

Description

 0.775(t/m³)Sound insulation quantity (Weight):(note:calculate on the basis of testing result of 12mm-thick plate) Adhesive                       astronautic serirs epoxy resin                                                 (used between -40ºC to 100ºC for long term)             Adhesive strengthShear StrengthRoom temperature≥25 MPa 100ºC≥15 MPaSheet-core peeling strength20ºC≥20 N/cm Honeycomb core adhesive strengthNode Room temperature>13 N/cm100ºC>8 N/cmShear strength room temperature20ºC≥0.44 MPa Wind pressure reistance strength      The measurement of the tested composite panel is              100mm*1500mm*20mm, and the tested wind preaaure is 3000Pa,                    the reasult of the experiment:                                      the wind pressure distortion performance can reach P3=3000Pa.


What Certificates We Obtained ?

Hongzan has obtained international recognized certificates and test reports for aluminum honeycomb panel related to Fire rate, sound insulation, and so on, E.G.:
  • ISO 9001:2008 by BV
  • Marine Certificates (Fire Rated A2) by LLOYDS
  • BS 476 ,475 by TUV PSD Singapore
  • EN13501-1 by ITS
  • ASTM by ITS
